Introduction
Description

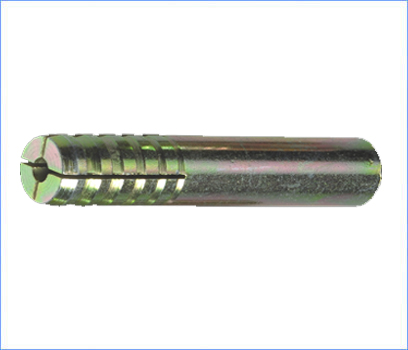

- Drop-in-Anchor
- When the bullet is placed in shell & hit with a setting tools it slides forward & the inside part of shell expands and takes the grip in the wall.
- Bullet type anchor shell with internal thread for pre-positioned installation.
Maximum Recommended load for Bullet Type Anchor
| Anchor Size | Recommended Load (for Non-cracked concrete) | |||||
| M6X30 | M8X40 | M10x40 | M12x50 | M16x60 | M20x80 | |
| Tensile | 1.4 | 2.2 | 2.9 | 5.4 | 9.5 | 12.4 |
| Shear | 1.2 | 3.0 | 3.8 | 7.5 | 13.0 | 16.0 |
- Plumbing
- Air ducts
- Heating
- Suspended ceilings
- Air-conditioning
- Cable Trays
- Ventilation installation
- Haid Rails
- Pipe suspension
- Staircase
