Introduction

DIN 1481

Sem Screw

All measurements in millimeters (mm)

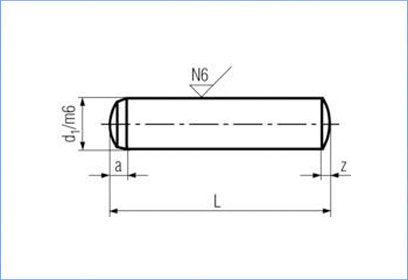

d a approx. z approx.
M0.8 0.46 0.12
M1 0.48 0.15
M1.5 0.62 0.23
M2 0.78 0.3
M2.5 0.95 0.4
M3 1.1 0.45
M4 1.4 0.6
M5 1.7 0.75
M6 2.1 0.9
M8 2.6 1.2
M10 3 1.5
M12 3.8 1.8
M14 3.8 2
M16 4.7 2.5
M20 6 3
