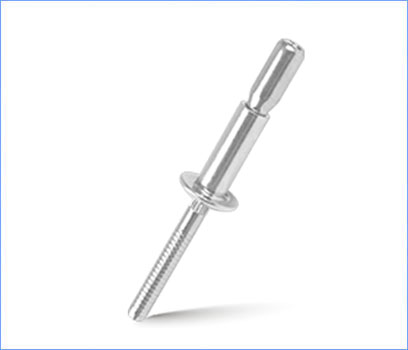

Anlock In-Bolt Blind Rivets Aluminium Alloy

IB Stainless Steel

Introduction

Features :

  • The blind rivet with a multigrip clamping range and a high tensile and shear strength offers a high resistance to vibrations and a good watertight conection.
  • After setting the rest mandrel is retained in the body permanently because of the special mandrel locking system.

Advantages :

  • Locking feature prevents loosing of mandrel from vibration.
  • Fastener over wide grip range.
  • Superior holding power.
  • High shear and tensile strength.

Application :

  • Truck building & containers
  • Automotive
  • Construction & coach work
IB Stainless Steel

Specification:

Part Number Dia (d)
mm/inch
Length (L)
mm/inch
Grip Range
mm/inch
Shear (n)
mm/inch
Tensile (n)
mm/inch
IBSAA48100D 4.8(3/16”)
4.93-5.18(.194-.204)
10.0 .394 1.7-6.8 .067-.268 5800 1304 4400 989
IBSAA48140D 14.0 .551 5.5-11.0 .217-.433
IBSAA64140D 6.4(1/4”)
6.63-7.01(.261-.276)
14.0 .551 2.1-9.5 .083-.374 11300 2540 8900 2001
IBSAA64190D 19.0 .748 8.9-15.8 .350-.622
