SELF ClINCHING STUDS AND PINS – Type KFH / KFHS / KFHA



Flush-head for sheet thickness of .040” /1mm and greater

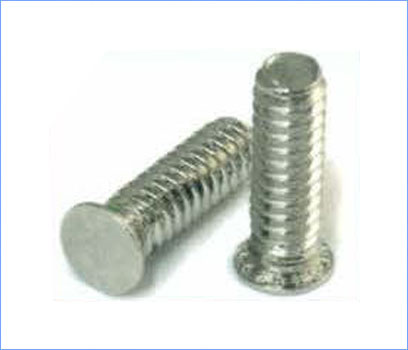

KFH (Flush head) studs are installed by packing them in punched or drilled holes in the sheets and squeezing

Into place with any standers press. The squeezing action embeds the head of the stud into the sheet. The metal displaced by the head flows smoothly and evenly around the ribs and in to the annular groove-creating a flush head assembly and securely locking the stud in to the sheet with high torque out and push out resistance. Other types such as unthreaded, KTFH (Non Flush ) Studs 7 KHFH (High Strength ) Studs are also available on special order.




Thread size X pinch Type Thread Code

Length Code "L" +_0.4
Lenght code in millimeters

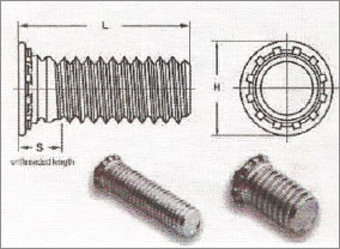

Min sheet Thicknesss Hole Size in sheet +0.08 Max hole in attachparts H + 0.4 S Max Min Dist hole C/L To Edge M
E
T
R
C
Fastners Material
Steel Stainless steel Aluminium
M2.5 x 0.45 KFH KFHS KFHA M2.5 6 8 10 12 15 18 NA NA NA NA 1 2.5 3.1 4.1 1.95 5.4
M3 x 0.5 KFH KFHS KFHA M3 6 8 10 12 15 18 20 25 NA NA 1 3 3.6 4.6 2.1 5.6
M3.5 x 0.6 KFH KFHS KFHA M3.5 6 8 10 12 15 18 20 25 30 NA 1 3.5 4.1 5.3 2.25 6.4
M4 x 0.7 KFH KFHS KFHA M4 6 8 10 12 15 18 20 25 30 35 1 4 4.6 5.9 2.4 7.2
M5 x 0.8 KFH KFHS KFHA M5 NA 8 10 12 15 18 20 25 30 35 1 5 5.6 6.5 2.7 7.2
M6 x 1 KFH KFHS KFHA M6 NA NA 10 12 15 18 20 25 30 35 1.6 6 5.6 8.2 3 7.9
M8 x 1.25 KFH KFHS KFHA M8 NA NA NA 12 15 18 20 25 30 35 2.4 8 8.5 9.6 3.7 9.6
Note : Other Threading (Unified ) and special length are also available on request. Please check the stock before placing an order. Example for finding out an article No, of M3 x 10 mm Steel Stud is KFH-M3 -10

|
|
|
