Sleeve Anchor

Hex Nut

Introduction

Description

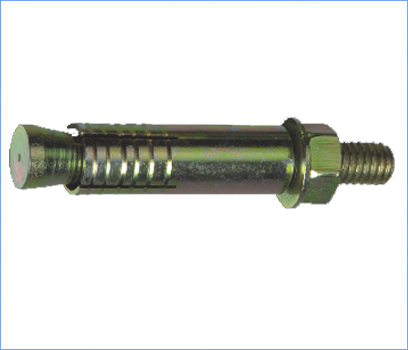

  • Sleeve Anchor for push through installation.
  • For these anchor cylindrical conical hole is made with an uncut drill bit.
  • The Sleeve is driven or pushed over the cone shaped bolt with a setting tool which takes the grip in the concrete.

Maximum recommended loads for each of the Sleeve Anchor with large axial spacing and edge distance.


Recommended Load FIS
M6
FIS
M8
FIS
M10
FIS
M12
FIS
M16
Non-cracked concrete
Tension Load [kN] 6.0 8.5 10.0 16.0 20
Shear Load [kN] 4.5 7.0 7.5 9.6 15.5
Usage

  • Machines
  • Staircases
  • Railings
  • Consoles
  • Ladders
  • Cable trays
  • Gates
  • Facades
  • Window elements
  • Steel Constructions
  • Wood constructions
