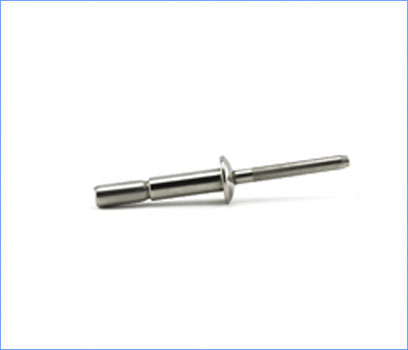

Stainless Steel In Lock Dome

BBN

Introduction

Features :

  • Stainless Steel In Lock Dome

Material :

  • Body : 302 Series Stainless Steel
  • Mandrel : 302 Series Stainless Steel

Finish :

  • Body : Natural
  • Mandrel : Natural
BBN

Specification:

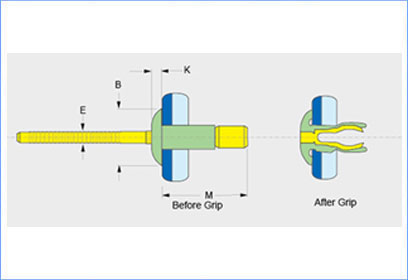

Part No Size Drill M Grip Range B K E Shear Tensile
Max Max Max Max KN Min KN Min
SOF-SSID-4.8×10.0 4.8
(3/16”)
4.9-5.1 18.2 1.58-6.85 10.2 2.3 3.1 6.0 4.5
SOF-SSID-4.8×14.0 24.6 1.58-11.09 10.2 2.3 3.1 6.0 4.5
SOF-SSID-6.4×14.0 6.4
(1/4”)
6.7-7.0 25.3 2.04-9.52 13.5 2.9 4.1 10.5 8.2
SOF-SSID-6.4×20.0 35.6 2.04-15.87 13.5 2.9 4.1 10.5 8.2
