Grub Screw

Introduction

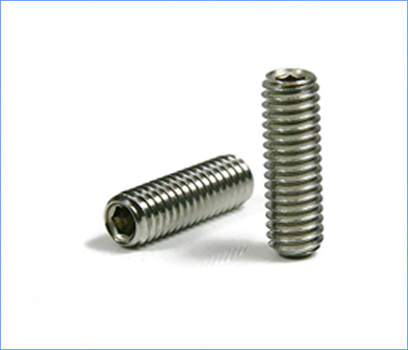

Grub Screw As Per Din 916

A grub screw, also known as a set screw, is a type of screw that is used to hold an object in place or to prevent movement between two parts. It is typically fully threaded and has a blunt end, which allows it to be inserted into a hole or bore and tightened down to hold an object in place. Grub screws are often used in applications where a positive stop or lock is required, such as in the adjustment of mechanical devices or in the securing of gears or pulleys. They are available in a variety of materials, including steel, stainless steel, brass, and nylon, and can be used with a variety of drive types, such as slotted, Phillips, hex, or socket.

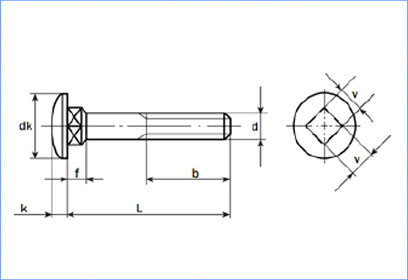

Carraige Bolt

Steel Grades: 8.8, SS 304
Finish: Self, Black, Bright Zinc, Hot Dip Galvanized (ROHS)

Dimensions

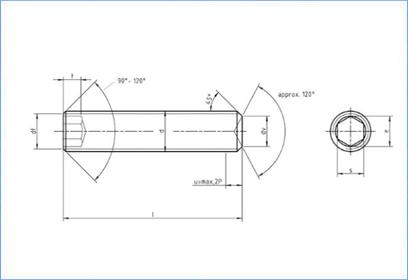

Grub Screw As per Din 916
DIAMETER (d) 2 x 0.4 P 3 x 0.5 P 4 x 0.7 P 5 x 0.8 P 6 x 1 p 8 x 1.25 P 10 x 1.5 P 12 x 1.75 16 x 2 P 20 x 2.5P 24 x 3 P
DIAMETER OF THE HOLE (dv) Min 0.75 1.15 1.75 2.25 2.75 4.70 5.70 7.64 9.64 13.57 15.57
Max 1.00 1.40 2.00 2.50 3.00 5.00 6.00 8.00 10.00 14.00 16.00
SOCKET DEPTH (t) Min 0.80 1.20 1.50 2.00 2.00 3.00 4.00 4.50 6.40 8.00 10.00
Max 1.70 2.00 2.50 3.00 3.50 5.00 6.00 8.00 10.00 12.00 15.00
SOCKET ACROSS FLAT (S) Nom 0.90 1.50 2.00 2.50 3.00 4.00 5.00 6.00 8.00 10.00 12.00
Min 0.89 1.52 2.02 2.52 3.02 4.02 5.02 6.02 8.02 10.02 12.03
Max 0.90 1.54 2.05 2.56 3.08 4.10 5.10 6.10 8.12 10.12 12.14
SOCKET CORNER FLAT (e) Min 1.00 1.73 2.30 2.87 3.44 4.58 5.72 6.86 9.15 11.43 13.72
Length Min Max
2 1.80 2.20
4 3.76 4.24
6 5.76 6.24 GSW02006 GSW03006 GSW04006 GSW05006 GSW06006
8 7.71 8.29 GSW02008 GSW03008 GSW04008 GSW05008 GSW06008
10 9.71 10.29 GSW02010 GSW03010 GSW04010 GSW05010 GSW06010 GSW08010
12 11.65 12.35 GSW02012 GSW03012 GSW04012 GSW05012 GSW06012 GSW08012
16 15.65 16.35 GSW02016 GSW03016 GSW04016 GSW05016 GSW06016 GSW08016 GSW10016
20 19.58 20.42 GSW02020 GSW03020 GSW04020 GSW05020 GSW06020 GSW08020 GSW10020 GSW12020 GSW16020
25 24.58 25.42 GSW02025 GSW03025 GSW04025 GSW05025 GSW06025 GSW08025 GSW10025 GSW12025 GSW16025
30 29.58 30.42 GSW02030 GSW03030 GSW04030 GSW05030 GSW06030 GSW08030 GSW10030 GSW12030 GSW16030 GSW20030
35 34.50 35.50 GSW02035 GSW03035 GSW04035 GSW05035 GSW06035 GSW08035 GSW10035 GSW12035 GSW16035 GSW20035 GSW24035
40 39.50 40.50 GSW02040 GSW03040 GSW04040 GSW05040 GSW06040 GSW08040 GSW10040 GSW12040 GSW16040 GSW20040 GSW24040
45 44.50 45.50 GSW02045 GSW03045 GSW04045 GSW05045 GSW06045 GSW08045 GSW10045 GSW12045 GSW16045 GSW20045 GSW24045
50 49.50 50.50 GSW02050 GSW03050 GSW04050 GSW05050 GSW06050 GSW08050 GSW10050 GSW12050 GSW16050 GSW20050 GSW24050
55 54.40 55.60 GSW02055 GSW03055 GSW04055 GSW05055 GSW06055 GSW08055 GSW10055 GSW12055 GSW16055 GSW20055 GSW24055
60 59.40 60.60 GSW02060 GSW03060 GSW04060 GSW05060 GSW06060 GSW08060 GSW10060 GSW12060 GSW16060 GSW20060 GSW24060
