Introduction

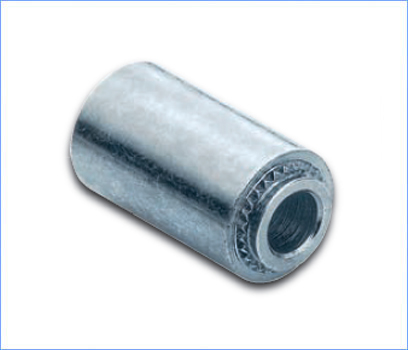

Long Rozen

Long Rozen is torque-proof, capable of withstanding high loads. It has minimal outside dimensions for space and weight-saving The thread is wear-resistant, clean and true to gauge. Mounting in drilled, punched or lasered receiving holes. Do not countersink drill holes in the component. Can be used in surface-treated, galvanized or unweldable materials. Long Rozen is not pressed out during the screwing process. The component material must be softer than the Long Rozen element

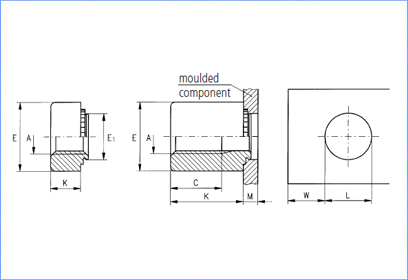

Internal Thread
A
Internal Thread
E
Nut Thickness
E1
Recommended hole diameter
L +0,05
Thread Depth Min
W
M 3 7,0 4,7 4,75 3,6
M 4 8,0 5,35 5,40 3,8
M 5 9,0 6,3 6,35 3,8
