Introduction
Features :

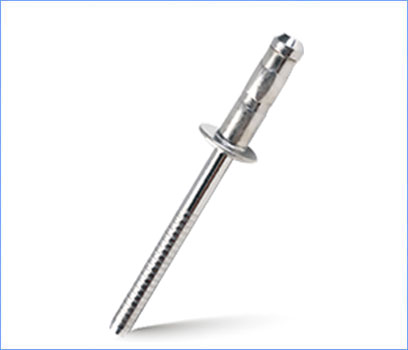

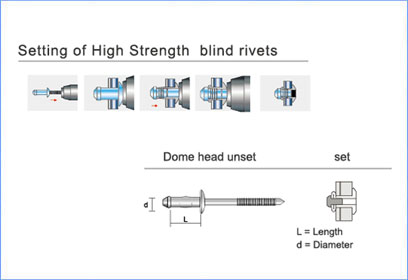

- High Strength blind rivet has exceptional strength for pull out and high shear strength. The mandrel is positively retained or setting and the tight formation is spread to provide a large bearing area. The external mandrel head feature provides a neat appeareance on setting.
Advantages :
- Locked, rattle free mandrel
- Superior shear and tensile strength, SOF-t and brittle materials inclusive
- Fills irregular holes
- Provides excellent integrity
Application :
- Truck building & containers
- Automotive
- Construction & coach work
Specification:
| Part Number | Dia (d) mm/inch | Length (L) mm/inch | Grip Range mm/inch | Shear (n) mm/inch | Tensile (n) mm/inch | ||||
| SOF-48100L | 4.8(3/16”) 4.9-5.0(0.193-0.197) |
10.0 | .394 | 33.7-36.2 | 1.327-1.425 | 4450 | 1000 | 2000 | 449 |
| SOF-48160L | 16.0 | .63 | 28.7-31.2 | 1.130-1.228 | |||||
| SOF-48200L | 20.0 | .787 | 23.7-26.2 | .933-1.031 | |||||
| SOF-48250L | 25.0 | .984 | 18.7-21.2 | .736-.835 | |||||
| SOF-48300L | 30.0 | 1.181 | 13.7-16.2 | .539-.638 | |||||
| SOF-48350L | 35.0 | 1.378 | 9.7-12.2 | .381-.480 | |||||
| SOF-48400L | 40.0 | 1.575 | 3.7-6.2 | .146-.244 | |||||
