Introduction
Features :

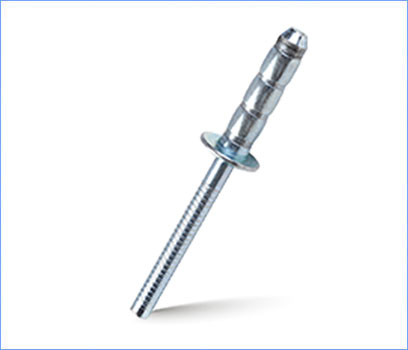

- High Strength blind rivet has exceptional strength for pull out and high shear strength. The mandrel is positively retained or setting and the tight formation is spread to provide a large bearing area.
- The external mandrel head feature provides a neat appeareance on setting.
Advantages :
- Locking feature prevents loosing of mandrel from vibration.
- Fastener over wide grip range.
- Superior holding power.
- High shear and tensile strength.
Application :
- Truck building & containers
- Automotive
- Construction & coach work
Specification:

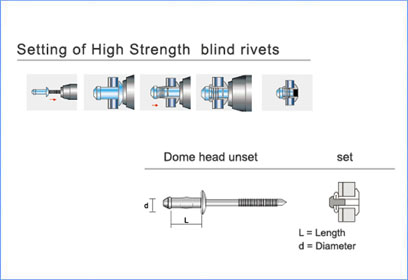

| Part Number | Dia (d) mm/inch | Length (L) mm/inch | Grip Range mm/inch | Shear (n) n/lbs | Tensile (n) n/lbs | ||||
| HKSKK32070D | 3.2(1/8”) 3.3-3.4(.130-.134) |
7.0 | .276 | 1.0-3.0 | .039-.118 | 1200 | 270 | 1300 | 292 |
| HKSKK32090D | 9.0 | .354 | 3.0-5.0 | .118–.197 | 1700 | 382 | |||
| HKSKK32110D | 11.0 | .433 | 5.0-7.0 | .197-.276 | 2500 | 562 | |||
| HKSKK40080D | 4.0(5/32”) 4.1-4.3(.161-.169) |
8.0 | .315 | 1.0-3.0 | .039-.118 | 2400 | 540 | 2800 | 629 |
| HKSKK40100D | 10.0 | .394 | 3.0-5.0 | .118–.197 | 3500 | 787 | |||
| HKSKK40120D | 12.0 | .472 | 5.0-7.0 | .197-.276 | 4100 | 922 | |||
| HKSKK40140D | 14.0 | .551 | 7.0-9.0 | .276-.354 | 3300 | 742 | 2500 | 562 | |
| HKSKK48090D | 4.8(3/16”) 4.9-5.1(.193-.201) |
9.0 | .354 | 1.5-3.5 | .059-.038 | 3600 | 809 | 3800 | 854 |
| HKSKK48115D | 11.5 | .453 | 3.5-6.0 | .138-.236 | 4200 | 944 | |||
| HKSKK48145D | 14.5 | .571 | 6.0-8.5 | .236-.335 | 5600 | 1259 | |||
